1. Ballast Water Treatment System

 Ballast Water Treatment System

Ballast water treatment systems (BWTS) are indispensable mechanisms installed on ships to sanitize ballast water, crucial for maintaining stability and preventing ecological disruptions during voyages. By effectively removing harmful organisms and pollutants, BWTS upholds marine ecosystem health while safeguarding vessel operation and global biodiversity.

2. Types of Ballast Water Treatment System

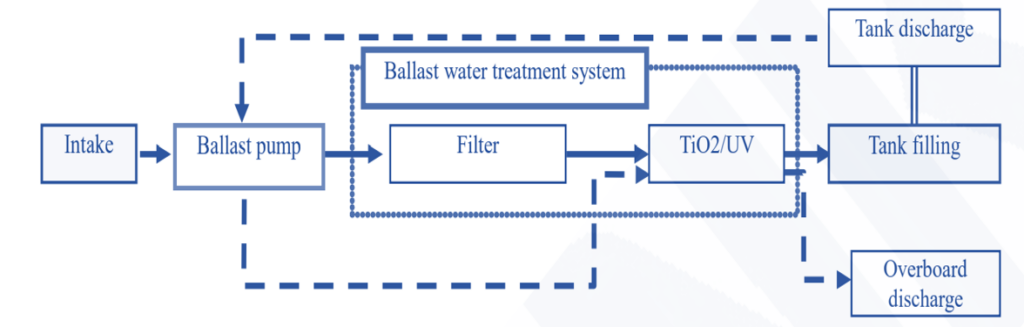

2.1:- UV Ballast Water Treatment System

UV BWTS system have special lights installed in ships’ water pipes. When the ship fills or empties its ballast tanks, water passes through these UV lights. The powerful UV light kills tiny organisms like bacteria and viruses by damaging their DNA. This stops them from reproducing and spreading into new areas.

UV treatment is good because it doesn’t need chemicals, so it’s safer for the environment. Plus, it’s easy to maintain and lasts a long time, which saves money for ship operators.

2.2:- Chemical Treatment Methods

Chemical treatments use substances like chlorine or ozone to kill organisms in ballast water. Chlorine kills bacteria, viruses, and algae, but it might not work against all organisms and can produce harmful chemicals.

Ozonation adds ozone gas to water to kill organisms and clean it up. It’s effective against a wide range of organisms and helps get rid of bad smells and colors in the water.

2.3:- Biological Treatment Methods

Biological treatment method for BWTS

Biological treatments use living things or natural processes to clean up ballast water. Bioremediation uses tiny organisms to break down pollutants in the water, making them harmless. This method is good for cleaning up organic pollutants but can be slower.

Biofiltration uses living organisms like bacteria and algae attached to filters to clean the water. It’s effective against many different organisms and pollutants, but it might take longer to work.

Learn more about BWTS with the Ballast Water Treatment Package

Ballast Water Treatment System

3. Environmental Effects of Ballast Water

Ballast water discharge causes considerable environmental difficulties, particularly the introduction of invasive species and pathogens into new environments. These creatures have the potential to disturb native biodiversity, alter ecosystem dynamics, and impact both the environment and the economy.

3.1:- Introduction of Invasive Species

Invasive species through ballast water

Ballast water discharge produces significant environmental problems, most notably the introduction of invasive species and pathogens into new ecosystems. These species can disrupt native biodiversity, alter ecosystem dynamics, and harm both the environment and the economy.

3.2:- Pathogen Spread

Ballast Water treatment system

Ballast water may also carry pathogens like germs and viruses, which can be dangerous to marine life and humans. These pathogens may induce diseases in native species, resulting in mass mortality and disturbing ecological balance.

3.3:- Destabilizing the Native Species

The process of ballasting and deballasting even harms the native species by displacing them from their native place and transferring them to an environment where either they die or they destroy the biodiversity of a new place by becoming an invasive species if the environment is suitable.

4. Ballast Water Management Convention

The International Maritime Organization (IMO) created laws to address the environmental dangers connected with ballast water discharge, which culminated in the Ballast Water Management Convention (BWMC). The BWMC seeks to prevent the spread of dangerous aquatic organisms and illnesses via ship ballast water.

Ballast Water Management Convention (BWMC)

4.1:- Ballast Water Management Convention (BWMC)

The BWMC was adopted in 2004 and came into effect in September 2017. It establishes criteria and procedures for the management and control of ship ballast water to reduce the introduction of dangerous aquatic organisms and pathogens.

The Ballast Water Management Convention introduces the standards for Ballast water for the safety of biodiversity and the environment. It introduces 2 standards for BWTS:-

  • Ballast Water Performance Standard (D1)
    • D1 is related to ballast water exchange as it requires to conduct an exchange of ballast water so that 95% of the water is exchanged away from the course.
  • Ballast Water Exchange Standard (D2)
    • D2 defines the criteria for the exchange of ballast water. It gives the specific number allowed in ballast water in the ballasting operation.
    • To learn more about these criteria, check out the norms of IMO for ballasting operations.

4.2:- Performance Standards

The Ballast Water Management System defines performance criteria for ballast water treatment systems to ensure that organisms and pathogens are efficiently removed or neutralized. These criteria are defined in the IMO’s “International Convention for the Control and Management of Ships’ Ballast Water and Sediments.”

4.3:- Approval and Certification Process

Ballast water treatment systems must go through a rigorous approval process to meet the IMO’s performance standards. Once approved, these systems are certified for use on ships covered by the convention.

4.4:- Compliance and Implementation

Member nations of the IMO are required to incorporate the Ballast Water Management Convention into national legislation. This includes rules for ships to follow ballast water management standards and guidelines, as well as processes for port state control inspections to ensure compliance.

5. Ballast Water Management Plan?

Ships subject to the BWMC must create and implement a Ballast Water Control Plan (BWMP), which outlines processes for ballast water exchange, treatment, and sediment control. The strategy should be tailored to each ship’s operations and approved by the flag state.

The components Ballast Water Management Plan include:

  • Vessel Description:- It includes the description of the ship with its name, type, size, and the cargo it carries.
  • Ballast Water Treatment System:- It gives us the information about Ballast water treatment system onboard and its location on the ship.
  • Working of BWTS:- The ballast water management plan should have the complete working of the BWTS that is present onboard.
  • Emergency Procedure:- In case of BWTS failure, the ballast water management plan should elaborate the procedure for maintaining the ballast water onboard.
  • Assigning of Responsibility:- This plan defines the responsible person for the different operations and procedures of the ballast water treatment system.

6. Ballast Water Record Book

Ships must keep a Ballast Water Record Book to record all ballast water operations, including exchange and treatment. This log book provides proof of conformity with the Ballast Water Management System and may be examined during port state control inspections.

7. What are Ballast water discharge criteria?

 Ballast water discharge criteria

The particular discharge criteria may differ based on the legal structure in existence, such as the International Maritime Organization’s Ballast Water Management Convention (BWM Convention).

(a) Organism Concentration:- Regulatory bodies frequently stipulate the maximum permitted concentration of viable organisms in ballast water, commonly expressing this limit as organisms per cubic meter. They intend this criterion to limit the risk of introducing invasive species into new settings.
(b) Size of creatures:- Some regulations may also limit the size of creatures that can be dumped in ballast water. This is because larger species may have a stronger ability to establish populations and damage ecosystems.
(c) Organism viability:– Criteria may address the reproductive capabilities of organisms found in ballast water. The goal is to avoid the introduction of organisms capable of reproducing and establishing sustainable populations in new habitats.

Click here to learn about the construction, working, and principles of Oily Water Separators.

8. Why do we need a Ballast Water Treatment System?

Some ballast water treatment technologies may have technological limitations, such as the ability to treat water with high sediment loads or varying water quality. Certain treatment approaches may also be ineffective against particular organism types or sizes, posing concerns for regulatory compliance.

8.1:- Preventing Invasive Species Spread:

Ballast water discharge has been a major vector for introducing non-native organisms into new areas, where they can grow invasive and harm native ecosystems. Treatment systems that successfully treat ballast water prior to discharge can remove or neutralize invasive organisms and prevent their development in new ecosystems. This helps to maintain the biological balance and biodiversity of marine ecosystems, protecting native species and habitats from negative consequences.

8.2:- Preserving Ecosystem Services:

Healthy marine ecosystems perform critical functions such as food production, climate regulation, nutrient cycling, and coastal protection. Invasive species introduced through ballast water discharge can degrade ecosystem services by outcompeting native species, modifying habitat architecture, and disrupting ecological processes. Ballast water treatment systems help sustain these ecosystem functions by reducing the introduction of invasive species and ensuring the integrity and functionality of marine ecosystems.

8.3:- Protecting Human Health:

Ballast water can contain pathogens such as bacteria and viruses that pose risks to human health, particularly in coastal areas where people rely on marine resources for food, recreation, and livelihoods. Pathogens introduced through ballast water discharge can cause waterborne diseases, contamination of seafood, and other public health concerns. By removing or neutralizing pathogens, ballast water treatment systems help protect human health and reduce the incidence of waterborne illnesses associated with contaminated ballast water.

Ballast Water Treatment System FAQs

Q1. Explain the importance of a ballast water treatment system.

Ships use ballast water to maintain stability and balance, often carrying a variety of marine species such as algae, bacteria, plankton, and larvae to new settings.

 Q2. Are all ships required to install BWTS?

Yes, all ships participating in international trips must comply with the BWMC and equip Ballast Water Treatment System. The convention applies to both new and existing boats, with compliance dates based on their construction date and size.

Q3. How can I ensure that my BWTS is operating effectively?

Regular maintenance, monitoring, and testing are required to ensure the proper operation of BWTS. This involves routine inspections, sensor calibration, filter and membrane cleaning, and water quality testing to validate treatment performance.

Q4. What are the environmental benefits of BWTS?

BWTS helps to maintain maritime ecosystems by reducing the spread of invasive species, preserving native biodiversity, and ensuring ecosystem services. They also advocate for sustainable marine practices by lowering the environmental impact of ballast water discharge and encouraging responsible ocean management.
