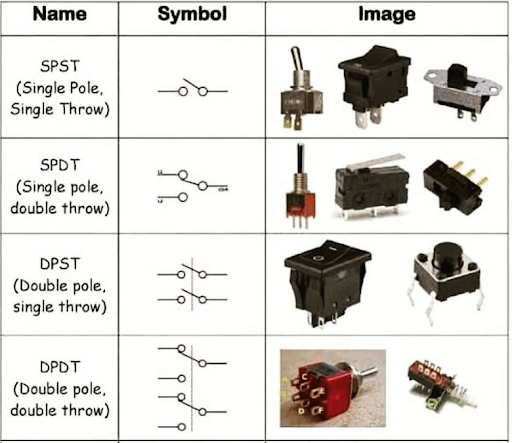

Electrical switches are essential components of any electrical circuit. Their primary function is to start, stop, interrupt, or redirect the flow of electrical current. Onboard ship switches are generally classified based on their application, circuit configuration (poles and throws) and operating mechanism.
In industrial and marine electrical systems, circuit breakers also function as switching devices while providing protection against overloads and short circuits.

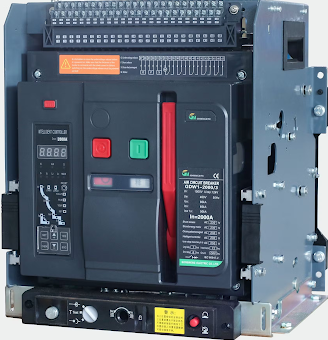

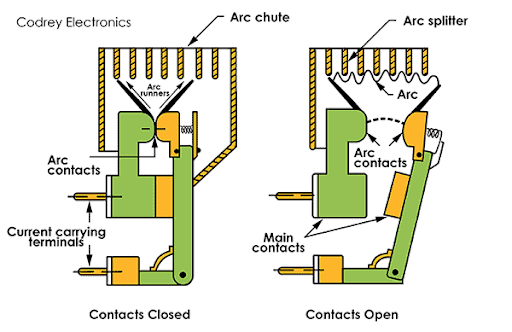

The Air Circuit Breaker (ACB) is one of the largest switching devices found on ships. It is installed between the generator and the Main Switchboard (MSB) and is responsible for connecting or disconnecting generator power from the electrical distribution system.
An ACB can be operated manually using ON/OFF push buttons or automatically through closing coils, trip coils and under-voltage release mechanisms. It is mainly used for high-current, low-voltage systems such as 440 V three-phase distribution. In higher voltage systems (3.3 kV or 6.6 kV), vacuum or SF₆ circuit breakers are generally preferred.
The MCCB is commonly used to isolate sections of a power system. Unlike an ACB, it is manually switched ON and OFF, while automatic tripping occurs during overload or short-circuit conditions. MCCBs are widely used in three-phase power distribution systems on ships and industrial installations.
In electrical schematics, MCCBs are often identified by the ANSI device number 52, a standard designation recognized worldwide.
The MCB is designed for lower power applications and is commonly found in residential buildings, accommodation areas on ships and control circuits. MCBs are available as single-pole, double-pole, triple-pole and four-pole versions, allowing protection of single-phase and three-phase circuits.
Like MCCBs, MCBs are manually operated but automatically trip when fault conditions occur.
Contactors are electrically operated switches designed for remote and automatic operation. They are widely used for controlling motors, pumps, compressors and other heavy electrical loads. Contactors can switch three-phase power without requiring manual intervention..
A contactor operates using an electromagnetic coil. When the coil is energized, it creates a magnetic field that pulls a movable armature, causing the main contacts to close and allowing current to flow to the load. When the coil is de-energized, a spring returns the armature to its original position, opening the contacts and disconnecting the circuit. This enables remote and automatic switching of high-power electrical loads.
Relays operate on the same electromagnetic principle as contactors but are generally smaller and used for low-power control circuits rather than high-current loads. A relay consists of an electromagnetic coil and one or more switching contacts. When the coil is energized, the contacts change position, allowing automatic control of various electrical functions.
Switch / Device | Operation | Typical Voltage / Rating | Main Application | Remarks |
Air Circuit Breaker (ACB) | Manual ON/OFF, Automatic Trip | 440 V AC, 3-Phase (High Current) | Main Switchboard (MSB), Generator Protection | Largest low-voltage switch on ships; operated using closing and trip coils. |
Molded Case Circuit Breaker (MCCB) | Manual ON/OFF, Automatic Trip | 240–690 V AC, 3-Phase | Power distribution, feeder protection | Used for isolation and overload/short-circuit protection. ANSI Device No. 52. |
Miniature Circuit Breaker (MCB) | Manual ON/OFF, Automatic Trip | 230/415 V AC | Residential, accommodation, control circuits | Available in single, double, triple and four-pole versions. |
Contactor | Automatic (Electromagnetic Coil) | 230–690 V AC, Single/Three Phase | Motor starters, pumps, compressors | Designed for frequent switching and remote operation. ANSI Device No. 88. |
Relay | Automatic (Electromagnetic Coil) | 12 V, 24 V, 48 V DC or 110/230 V AC Control Voltage | Control and protection circuits | Smaller than contactors; switches low-power control circuits. |
Electrical switches range from simple household toggle switches to sophisticated marine circuit breakers, contactors and relays. Understanding their operating principles, applications and circuit symbols is essential for anyone working with electrical systems. Whether controlling a household light, protecting an industrial machine, or managing a ship’s power distribution network, selecting the correct switch ensures safety, reliability and efficient electrical operation.
Contactors switch high power (motors), relays switch low-power control circuits (signals).
