Walk into the engine room of any modern ME or RT‑flex vessel and you won’t find a camshaft turning away at the side of the engine. No fuel cams, no exhaust cams, no reversing gear clunking into place. All of that mechanical choreography has been replaced by something quieter and, frankly, cleverer: a servo oil system that fires fuel and lifts exhaust valves on command, cylinder by cylinder, purely through hydraulic pressure.
Buried inside that system is a component that rarely gets much attention until it starts causing trouble : The Accumulator. It’s a simple‑looking pressure vessel, but get its charging wrong and you’ll see it in your rail pressure trend almost immediately: oscillations, sluggish response, sometimes an alarm you didn’t expect. Get it right, and it just quietly does its job for years. This post looks at what an accumulator actually does, how it’s charged, and what to watch for so it keeps doing that job properly.

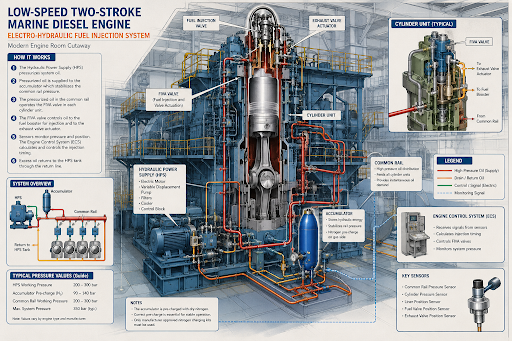

Here’s the thing about electronically controlled engines: fuel injection and exhaust valve actuation don’t happen smoothly. They happen in short, sharp bursts of a fraction of a second of high oil demand from the common rail, then nothing, then another burst from the next cylinder. Multiply that across six, eight, or ten cylinders firing in sequence, and you’ve got a rail that’s being hit with rapid, uneven demand pulses all the time.
If there were nothing to buffer that, rail pressure would bounce around constantly, and injection timing which depends on stable pressure would suffer. That’s the accumulator’s entire reason for existing. It sits on the rail, stores hydraulic energy when demand is low, and instantly gives that energy back the moment a cylinder calls for oil. Pressure stays flat. Injection stays accurate.
Quick pointer: If you ever see rail pressure “breathing” on the trend display small, regular oscillations that track with engine RPM that’s often your first clue to check the accumulator pre‑charge before you go chasing anything else.
There are two separate charges going on here, and it’s worth keeping them distinct in your head because they’re checked and topped up completely differently.
The gas side comes first, Before any oil ever touches the accumulator, the gas chamber is charged with dry nitrogen to a specific pressure. This figure comes straight from the maker’s data plate, and it’s not something you ignore. That nitrogen charge is what gives the accumulator its “spring.” Think of it as pre‑loading a shock absorber before you put weight on it.
The oil side comes second, once the engine’s hydraulic power supply is running. Pressurised system oil is admitted into the fluid side of the accumulator, and as it pushes against the piston or bladder, it compresses the nitrogen further. That compression is where the stored energy actually lives.
Once both charges are in place, the accumulator just breathes with the system: oil goes in, nitrogen compresses a little more, pressure holds steady; a cylinder draws oil for injection, nitrogen expands a touch, pressure holds steady again. It’s a constant, tiny back‑and‑forth that most of the time nobody notices which is exactly the point.
Piston-type accumulator cross-section:The nitrogen chamber and oil chamber are separated by a free-moving piston, with the gas valve used for pre-charging.
Quick pointer: Pre‑charge and hydraulic charge should never be checked in the same breath. Always isolate and de-compress the oil side before you touch the gas valve otherwise your gauge reading is meaningless.
Nitrogen pre‑charging (engine stopped, system isolated)
A charged accumulator is a gas‑over‑oil pressure vessel, and it deserves the same respect you’d give any pressurised system on board.
Accumulator and hydraulic component work always calls for proper PPE and a clean, methodical approach; the pressures and gas involved don’t forgive shortcuts.
Nitrogen doesn’t stay put forever; it slowly permeates through the bladder or past the piston seals into the oil side, so the pre‑charge drifts down over time even if nothing’s wrong. A few habits keep this from sneaking up on you:
Quick pointer: Keep a running log of pre‑charge readings over time rather than just pass/fail. A pattern of gradual pressure loss tells you a lot more than a single snapshot ever will.
The accumulator doesn’t do anything glamorous, it just stores a bit of energy and gives it back on demand, over and over, thousands of times an hour. But that quiet buffering is what keeps rail pressure flat, injection timing accurate, and the whole electro‑hydraulic system behaving itself. Get the nitrogen pre‑charge right, respect the safety basics around handling gas and pressure, and keep an eye on the trends over time, and the accumulator will keep doing its job without ever demanding much attention in return.
Because fuel injection and exhaust valve actuation draw oil from the common rail in short, uneven bursts. The accumulator absorbs those pressure swings so the rail stays stable and injection timing stays accurate.
Nitrogen is inert and won’t react with hydraulic oil under pressure. Oxygen or compressed air can, and that reaction can be violent.
Too low, and the accumulator’s gas cushion isn’t enough to absorb demand properly, so rail pressure gets unstable. Too high, and you risk the piston or bladder slamming into the poppet assembly, which damages seals faster than normal wear would.
Following the engine builder’s interval it’s usually printed on the accumulator’s data plate or in the service manual. Check more often early on, right after commissioning or an overhaul, since that’s when problems tend to show up first.
Logging every pre‑charge reading over time instead of just checking pass/fail. A slow downward trend is your early warning; waiting for a hard failure means you’ve already missed it.
