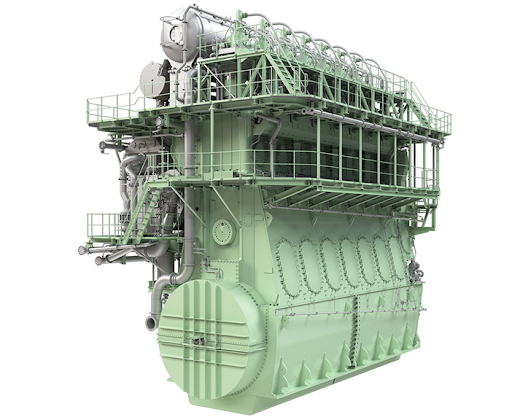

The MAN B&W main engine is one of the most widely used marine propulsion engines in the global shipping industry. Renowned for its reliability, fuel efficiency, and robust design, MAN B&W two-stroke diesel engines power thousands of container ships, bulk carriers, tankers, and other merchant vessels worldwide.
As modern shipping demands greater efficiency and lower emissions, MAN B&W engines continue to evolve with advanced electronic controls, improved combustion technology, and compliance with international environmental regulations.
The MAN B&W brand is the result of a collaboration between the German engineering company MAN and the Danish company Burmeister & Wain (B&W). Over decades, their combined expertise has led to the development of some of the most successful low-speed marine diesel engines ever built.
Today, MAN Energy Solutions licenses its engine designs to major engine manufacturers around the world, making MAN B&W engines a dominant force in marine propulsion.
MAN B&W engines are primarily low-speed, two-stroke diesel engines designed for direct propulsion of ships. These engines are connected directly to the propeller shaft without requiring reduction gearing, resulting in higher efficiency and reduced power losses.
Key characteristics include:
Feature | KEF Series | KGF Series | MC Series | ME Series |
|---|---|---|---|---|
Generation | Early MAN B&W engine series | Improved version of KEF | Modern mechanically controlled engine | Fully electronically controlled engine |
Control System | Fully mechanical | Fully mechanical | Mechanical with electronic monitoring | Fully electronic |
Exhaust Valve Operation | Push-rod operated | Exhaust valve rotators with roller bearings | Camshaft-operated | Electronically controlled |
Fuel Injection | Conventional mechanical injection | Conventional mechanical injection | Mechanical injection with VIT | Electronic fuel injection |
Turbocharging System | Pulse turbocharging | Pulse turbocharging | Advanced turbocharging system | Electronically optimized turbocharging |
Reversing Method | Mechanical reversing arrangement | Reversing cam mounted on keyed hub | Air-operated reversing system | Electronic control system |
Servo Motors | Not fitted | Not fitted | Limited usage | Fully integrated electro-hydraulic system |
Camshaft | Present | Present | Present | Eliminated |
Fuel Efficiency | Moderate | Improved over KEF | High | Very High |
Emission Control | Basic | Basic | Improved combustion control | Optimized for IMO compliance |
Maintenance Requirement | High | Moderate | Moderate | Lower mechanical maintenance |
Automation Level | Very Low | Low | Medium | Very High |
Reliability | Good | Better than KEF | Excellent | Excellent |
Alternative Fuel Capability | No | No | Limited | LPG, LNG, Methanol & Dual-Fuel Ready |
The MAN B&W engine operates on the two-stroke diesel cycle.
The process consists of:
This process occurs during every crankshaft revolution, resulting in exceptional power output and efficiency
Key features include:
The electronic control system continuously adjusts engine parameters according to operating conditions, maximizing efficiency and reliability.
Marine engineers routinely perform:
Proper maintenance ensures maximum engine performance and extends service life.
The MAN B&W main engine remains one of the most influential developments in marine engineering. Its proven reliability, exceptional fuel efficiency, and continuous technological innovation have established it as the backbone of modern commercial shipping. For marine engineers, understanding the design, operation, and maintenance of MAN B&W engines is essential for ensuring safe and efficient vessel operations across the world’s oceans.
