None of the piston work happens in isolation, Every piston runs inside a cylinder liner, and the liner is doing just as much of the real work: containing combustion pressure, giving the piston rings a surface to actually seal against, and carrying away a genuinely large share of the heat combustion produces.
It’s also one of the most closely measured components in the whole engine and one with its own specific fault patterns, its own removal and fitting procedure, and its own dedicated hardware just to keep it running clean. Worth covering properly, start to finish.

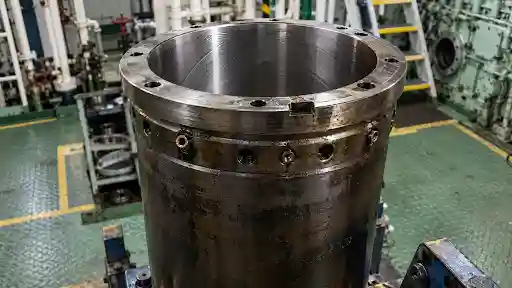

A cylinder liner is a replaceable sleeve fitted inside the engine block, forming the actual wall the piston and rings run against. It’s built replaceable on purpose the liner takes the wear so the engine block itself doesn’t have to be scrapped or re-bored every time that wear adds up.
Its jobs, includes:-
Cylinder liners are almost universally made from cast iron, chosen for its natural wear resistance and its ability to hold a fine surface finish that retains a lubricating oil film. Modern liners typically use alloyed cast iron, with chromium, molybdenum, and vanadium added specifically to improve hardness and wear resistance beyond what plain grey cast iron offers.
The liner sits in the engine block on a machined seating lip, usually near the top, with the cylinder cover holding it down once fitted. This seating arrangement matters mechanically, it lets the liner expand downward slightly as it heats up during running, rather than expanding against a rigid constraint in both directions, which reduces the thermal stress the liner has to absorb every time the engine warms up.

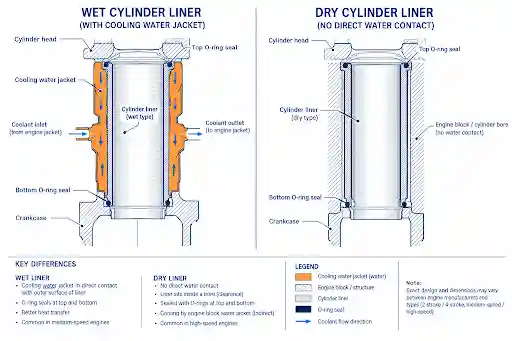

Auxiliary engines almost always use wet liners – the cooling water jacket is in direct contact with the outside of the liner, sealed at top and bottom by O-rings between the liner and the engine block.
A dry liner, by contrast, sits inside a bore that’s already cooled indirectly through the surrounding block, with no direct water contact on the liner’s outer surface.
Wet liners dominate in marine auxiliary engines because direct water contact cools the liner more effectively genuinely important given how much heat a liner absorbs continuously. The tradeoff is that sealing now matters a great deal: a failed O-ring lets cooling water leak either into the crankcase or into the combustion space, neither of which is a small problem.
That’s exactly why most wet liner installations include a tell-tale hole between the upper and lower seals – a small drilled passage that lets any leak past the first seal drain outward and get noticed, rather than silently working its way further into the engine.

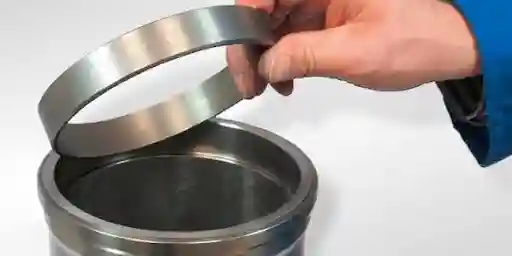

Fitted into the upper end of the liner, just above where the top piston ring travels, the anti-polishing ring has one specific job: scraping carbon deposits off the piston’s top land before they can reach the liner wall.
Why it’s needed: carbon builds up naturally on the piston crown and top land during normal combustion. Left alone, that carbon eventually contacts the liner surface and because carbon is abrasive it starts wearing down the microscopic peaks in the liner’s surface finish. This is called bore polishing, and it’s a genuine problem rather than a cosmetic one: those peaks and the valleys between them are exactly what holds a thin film of lubricating oil against the liner wall. Polish them away, and the liner surface can no longer retain oil properly.
The ring itself has a slightly smaller inside diameter than the liner it’s fitted into, so as the piston travels past it on every stroke, it physically scrapes carbon off the top land before that carbon ever gets the chance to reach the main liner surface. It’s a small, continuously working piece of hardware doing a job that would otherwise fall entirely on regular manual decarbonising.

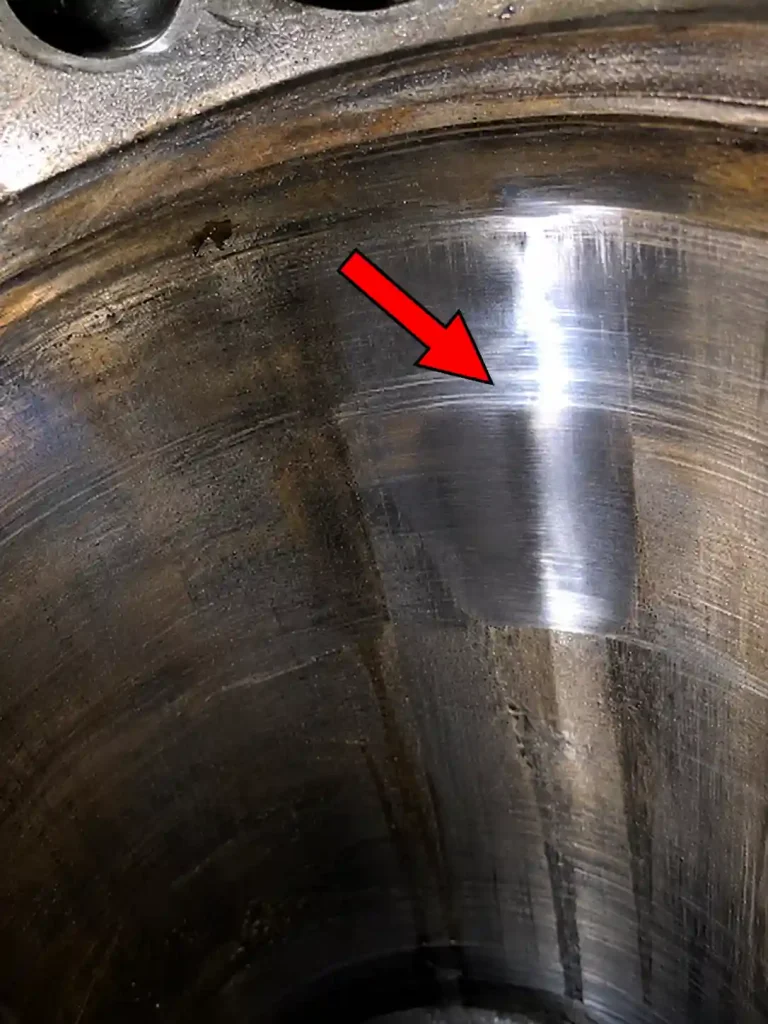

Bore polishing is what develops when carbon deposits are allowed to work against the liner surface over time, whether from a missing/ineffective anti-polishing ring, a fouled one, or simply excessive carbon formation from poor combustion.
What it looks like: a liner surface that’s gone mirror-smooth in patches which, is a bad sign, not a good one. The hydrodynamic oil film that should sit in the liner’s surface texture can no longer form properly on a polished patch.
What it leads to:
Once bore polishing has set in on a patch of liner, it doesn’t reverse itself the liner needs re-honing to restore a working surface texture, or renewal if the wear has gone too far for honing to fix.

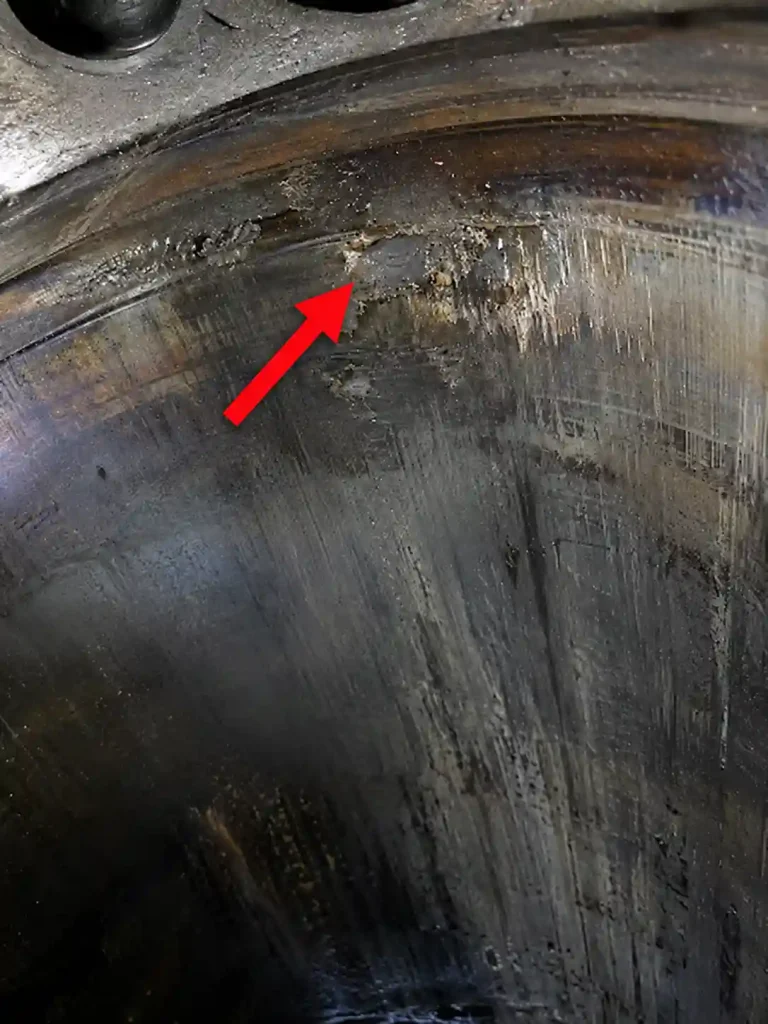

Scuffing is a localised welding between particles of the piston ring and the liner surface, caused when the oil film between them breaks down completely and friction heat is enough to actually fuse the two metal surfaces together momentarily before they tear apart again.
It happens most often near top dead centre, and for a specific reason: that’s where combustion pressure pushes the ring hardest against the liner wall, while piston speed is close to zero the exact combination of high load and minimal sliding speed that makes it hardest to maintain a proper oil film. It’s also disproportionately common early in an engine’s life or shortly after a liner or ring change, which is exactly why correct running-in procedure matters as much as it does.

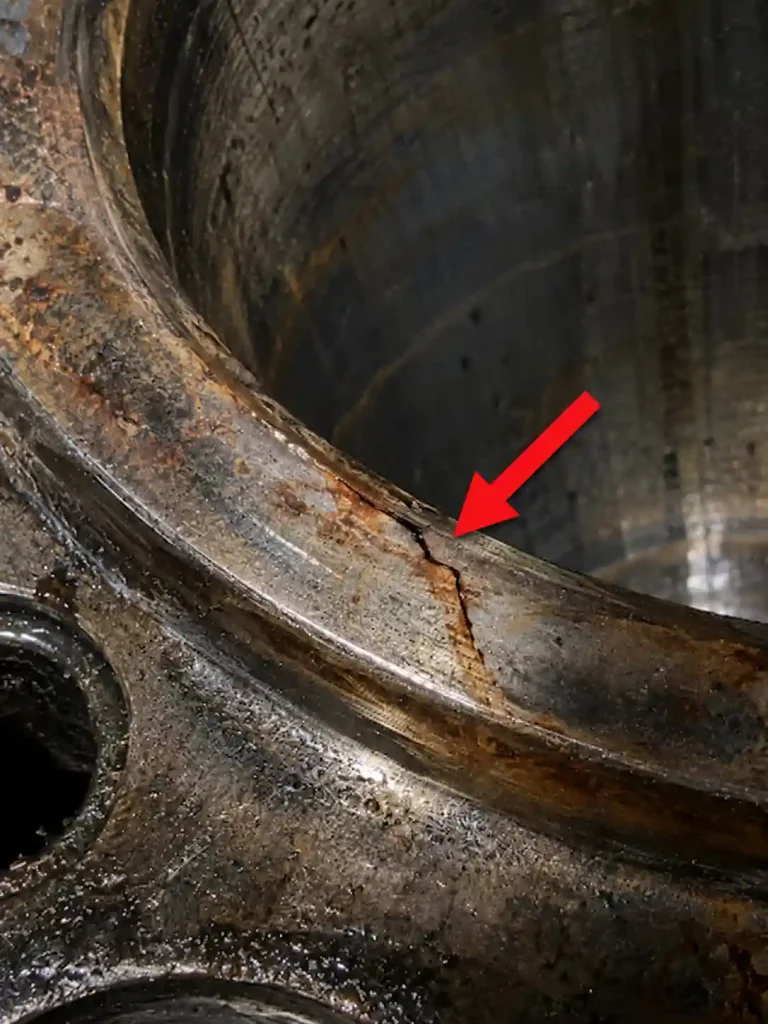

Cracking is a less common but more serious failure than wear or polishing, and it tends to show up in one of two ways:-
A cracked liner is never a “monitor and see” situation. Any confirmed crack means renewal, since a liner that loses structural support at the flange, or that’s already cracked under thermal stress, is only getting worse from that point on.
Liner wear is friction wear between the piston rings and the liner surface, but the rate and pattern depends on more than just running hours.
Mechanical factors:
Corrosive factors:
Interestingly, a small, controlled amount of this corrosion is actually considered healthy for the liner it’s part of what keeps the surface from polishing over in the first place. The balance matters: too little alkalinity in the cylinder oil and cold corrosion runs unchecked; too much, and it leaves excess deposit on the piston that itself drives bore polishing. Getting cylinder oil feed rate and base number right is genuinely a balancing act, not a “more is always safer” situation.
A liner’s surface tells you a lot before a micrometer ever comes out.
What you see | What it actually means |
Worn-bright, slightly oily surface | Healthy this is what a properly lubricated liner should look like |
Mirror-like dry finish (bore polishing) | Trouble local lubrication has failed and the oil retaining surface texture is gone |
Black patches | Piston rings are leaking combustion gas past them |
Ridges at stroke extremes or near ports | Normal wear pattern from repeated piston travel needs grinding out during overhaul |
Visible cracking, especially near the flange | Serious, liner requires renewal,not repair |
Any scoring, ridges, or surface damage found this way gets addressed with grind stones or oil stones as appropriate, before the liner goes back into service.

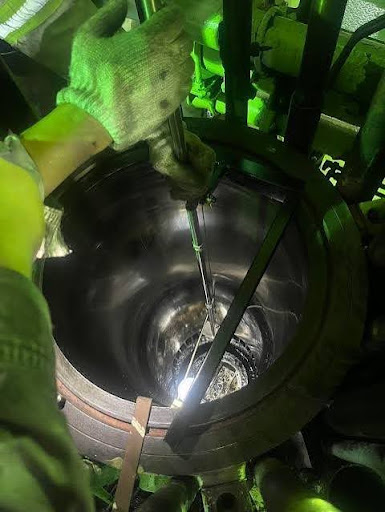

Liner wear measurement, often called calibration, happens during a unit overhaul, once the cylinder head, piston, and running gear are already out of the way.
The procedure, in sequence:-
Readings are normally taken at 8 to 10 vertical positions covering the full area the piston rings actually sweep, and every gauging session gets logged so a genuine wear rate  can be tracked over the liner’s life.
What the readings are checked for:
Projected wear rate matters as much as the current reading of a liner, a liner that’s within limits today but on track to exceed them before the next scheduled overhaul needs planning for now, not at the next inspection.
Liner removal only happens once the piston, connecting rod, and cylinder head are already out it’s not a job done on its own.
Sequence:
Fitting a new or reconditioned liner is where a rushed job creates problems that won’t show up until the engine’s already running.
Â
The cylinder liner and the piston are really one working pair, everything about ring clearance only makes sense because there’s a liner surface on the other side of it, taking the same wear from the opposite direction. Understanding the liner’s construction, why it wears and cracks the way it does, what the anti-polishing ring is actually fighting against, and how it’s measured, removed, and refitted properly, is what turns a liner overhaul from a routine teardown into a genuine condition assessment. Keep the wear rate trending, respect the running-in period every single time, and a liner will tell you well in advance when it’s actually time to renew it.
A wet liner has cooling water in direct contact with its outer surface, sealed by O-rings at top and bottom, the standard choice in marine auxiliary engines for effective cooling. A dry liner sits in a bore cooled indirectly through the surrounding engine block, with no direct water contact on the liner itself.
It scrapes carbon deposits off the piston’s top land before they can reach the main liner surface, preventing bore polishing where carbon wears away the liner’s oil-retaining surface texture and leads to rising oil consumption and scuffing risk.
A controlled degree of cold corrosion helps prevent the liner surface from becoming polished, since a polished, over-smooth surface can’t hold an oil film properly. Getting cylinder oil alkalinity and feed rate right is a genuine balance; too little allows excess corrosion, too much promotes the deposit buildup that drives bore polishing.
That’s where combustion pressure pushes the ring hardest against the liner while piston speed is close to zero, creating the worst possible combination for maintaining a lubricating oil film high load with minimal sliding motion to help distribute oil across the surface.
A crack, particularly at the flange that supports the liner’s weight, only worsens under continued thermal and mechanical stress. There’s no reliable repair that restores the liner’s structural integrity, so renewal is the only safe option once a crack is confirmed.
