The vertical shaft is one of the most important components of an Alfa Laval purifier. It transfers power from the electric motor to the bowl assembly allowing the bowl to rotate at high speed for efficient separation of oil, water and sludge. Since the shaft operates continuously under heavy loads, regular inspection and overhaul are essential to maintain the purifier’s performance and prevent unexpected failures.
The vertical shaft consists of a main rotating shaft which carries the bowl assembly as well as transfers the rotational power to it through the gears. The shaft is held in place by bearings and runs at a very high rotational speed.
As a result, precision grinding and regular lubrication of the vertical shaft are necessary to ensure that the bowl assembly rotates smoothly.
A well maintained vertical shaft guarantees optimal performance, reduces vibration levels and extends the bearing life.

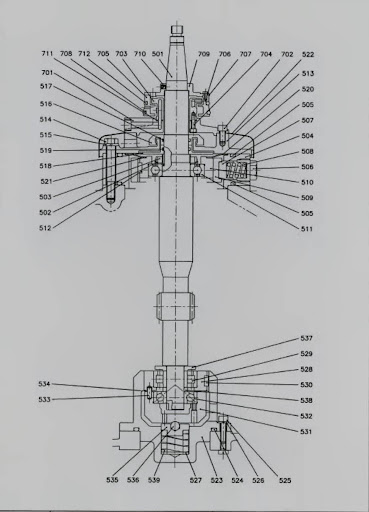

Main Components of the Vertical Shaft Assembly

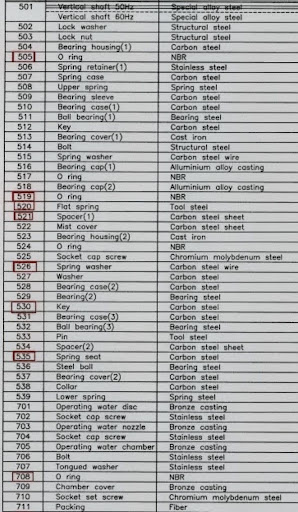

The main components of the vertical shaft assembly include:
An overhaul is generally carried out during planned maintenance or whenever abnormal operating conditions are observed.
When the purifier has run for an extended period as recommended by the manufacturer
Tools Required
Before starting the overhaul ensure the required tools are available.
Always use the original Alfa Laval maintenance tools whenever possible.
The following are the step by step procedures of overhauling the vertical shaft.
Keep all removed parts arranged in order to simplify reassembly.
Clean every part thoroughly using approved cleaning fluid. Pay special attention to:
Do not use abrasive tools that may damage precision machined surfaces.
Carefully inspect the shaft and related parts for:
Replace damaged components before reassembly.
After inspection:
The shaft should rotate freely without excessive resistance.
Inspection Criteria
During the overhaul, pay close attention to the following:
Any worn or damaged part should be replaced with genuine spare parts.
Testing After Overhaul
Once reassembly is complete:
A successful test run indicates that the overhaul has been completed correctly.

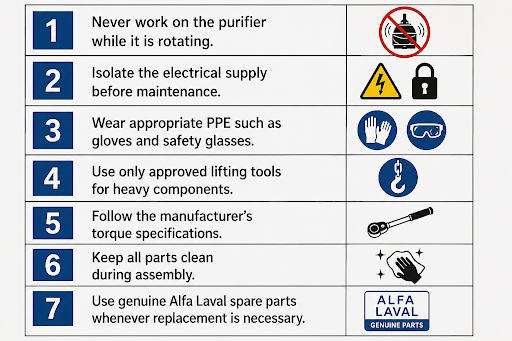

Always follow these safety practices:
The vertical shaft is a crucial component of the Alfa Laval purifier. It is important to carry out routine maintenance, inspection and overhaul of this part to ensure optimal performance of the equipment. This guideline highlights the basic steps of overhauling the Alfa Laval Purifier vertical shaft, inspection criteria and maintenance safety measures.
The vertical shaft transfers the rotational power from the motor to the bowl, enabling it to rotate at high speeds, facilitating the separation of oil and water.
The signs include excessive vibration, unusual operational noises, hot bearings, oil leakages and low performance of the purifier.
The alignment of the shaft should be correct to avoid vibration that may damage the equipment.
