If you are studying marine engineering or already working onboard, you’ve probably heard the term RT-flex engine many times. And honestly, it’s one of those topics that sounds complicated at first, but once you understand the idea behind it, it becomes much easier.
The RT-flex engine is a major development in low-speed marine diesel engines because it changed the way fuel injection and engine control are handled. Older engines depended heavily on mechanical systems like camshafts. RT-flex engines moved a big part of that control into electronic systems, which gave ship operators and engineers much better flexibility, efficiency, and performance.
An RT-flex engine is a low-speed, two-stroke marine diesel engine that uses electronic control and a common rail fuel injection system instead of the traditional mechanical camshaft-based arrangement.
That may sound technical, so let’s simplify it.
In older marine engines, the timing of fuel injection and exhaust valve operation was controlled mechanically. That worked, but it had limitations. The engine could not adjust itself very flexibly under different operating conditions.
The RT-flex engine changed that. By using electronic control, it became possible to manage fuel injection more accurately. That means better combustion, smoother operation, and improved performance, especially when the engine is running at low loads.
So the real difference is this:
That’s why RT-flex is considered such an important step in marine engine development.
The shipping industry always wants three things:
Traditional engines were strong and dependable, but they were less flexible when ships needed to operate under changing load conditions, especially during slow steaming.
RT-flex technology was introduced to solve exactly that problem.
With better control over injection timing and pressure, the engine could perform more efficiently across different operating conditions. This helped not just with fuel consumption, but also with combustion quality and exhaust emissions.
So RT-flex was not introduced just to look modern. It was introduced because ships needed engines that could operate in a more intelligent and efficient way.
The most important part of the RT-flex engine is its common rail system.
In a conventional engine, fuel injection is usually tied closely to mechanical timing. In an RT-flex engine, fuel is stored in a pressurized common rail, and the injection process is controlled electronically.
This gives the engine much more freedom to adjust:
This is a huge advantage because the engine is no longer locked into one fixed mechanical timing pattern.
Another key feature is that the RT-flex engine is often described as camshaftless for its main control functions.
That does not mean the engine has no mechanical parts. It means the important operations like fuel injection and exhaust valve control are no longer fully dependent on a traditional camshaft arrangement.
This electronic control makes the engine more responsive and more precise.
And in marine engineering, precision matters. Small improvements in combustion and timing can lead to big gains in fuel economy and operational performance over time.
The RT-flex engine became popular because of the practical advantages it brought. These are the main features that make it different from older systems.
This is the core feature of the engine. The common rail system allows fuel to be supplied at high pressure and controlled electronically for better combustion.
Since injection is electronically managed, the engine can adapt more easily to different loads and operating conditions.
Slow steaming is common in shipping when operators want to save fuel. RT-flex engines perform much better at low loads compared to many traditional systems.
Better combustion usually means cleaner combustion. Because the engine can control fuel delivery more accurately, emissions performance improves as well.
When combustion is optimized, fuel is used more effectively. Over time, that means lower operating costs.
Even though the engine is more advanced electronically, it was designed for marine use, where reliability is critical.
Now let’s move away from textbook language and talk practically.
Why does an RT-flex engine actually matter onboard?
Because onboard, nobody cares whether an engine sounds advanced on paper. What matters is whether it helps in real operation.
The RT-flex engine gives real operational benefits such as:
For shipowners, this means cost savings and better compliance.
For marine engineers, it means working with a system that requires more understanding, but also delivers better performance.

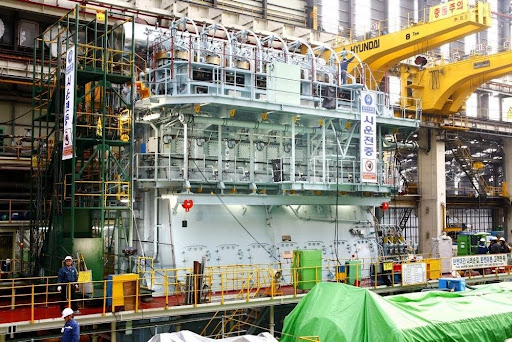

One of the most well-known examples is the RT-flex96C.
This engine became famous because it showed that common rail technology was not limited to small engines or experimental setups. It was used in some of the largest and most powerful marine diesel engines in the world.
Another example is the RT-flex50 engine series.
This showed that RT-flex technology could be used across different engine sizes and commercial applications. It was another sign that the system was being adopted seriously in the marine industry, not just treated as a one-time innovation.
To understand RT-flex properly, compare it directly with a conventional low-speed marine engine.
That is why RT-flex is often seen as a major shift in marine engine design.
Here’s the blunt truth: no, not automatically.
The engine gives many advantages, but it also demands a better level of understanding from marine engineers.
On older engines, the focus was more mechanical. On RT-flex engines, you also need to understand:
So yes, the engine is better. But it also raises the technical standard for the people operating and maintaining it.
That is exactly why learning RT-flex is important for students and junior engineers. Modern ships are not moving backward. They are becoming more automated and more control-based.
If you are planning to work onboard, understanding RT-flex is valuable for one simple reason:
this is the kind of engine technology that connects basic theory with real modern ship practice.
When you study RT-flex properly, you are not just learning one engine model. You are learning bigger concepts like:
These are the kinds of topics that help you both in exams and in practical shipboard work.
The RT-flex engine is a major step forward in marine diesel engine technology. It replaced many limitations of traditional mechanical control with a more flexible and precise electronic system.
The biggest strength of RT-flex lies in its common rail injection and electronic control, which allow better fuel efficiency, improved combustion, stronger slow steaming performance, and lower emissions.
