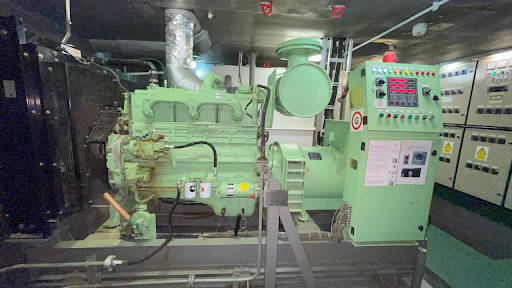

An emergency generator is a separate generator set designed to supply power to essential emergency loads when the ship’s main power source fails. It is located outside the main and auxiliary machinery spaces and is placed in a safe position so that it is unlikely to be affected by fire, flooding, or any casualty that disables the main machinery space.
The emergency generator has its own emergency switchboard and is fitted with an independent starting arrangement. In most ships, it is arranged to start automatically when the main power supply is lost and must be capable of supplying the emergency services within 45 seconds.

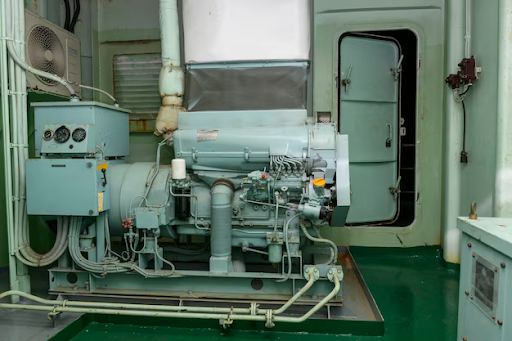

According to standard marine practice and SOLAS-based arrangements, the emergency generator must be installed in a separate compartment, outside the main machinery space and generally above the uppermost continuous deck. It should not be forward of the collision bulkhead.
The reason for this location is simple: if the engine room is damaged by fire, flooding, or explosion, the emergency generator must still remain operational. Its position must reduce the likelihood of common-cause failure with the main plant.
The emergency switchboard is usually installed in the same vicinity as the emergency generator.
The emergency generator is designed to start automatically when the voltage or frequency of the main supply drops below a safe level or disappears completely. A start-up relay senses the failure and initiates the starting sequence.
In normal operation, the generator remains in auto mode, ready to take over at any moment. Once it starts, it must come up to speed and connect to the emergency switchboard quickly, usually within 45 seconds.
This automatic starting arrangement is essential because during a blackout, even a short delay can lead to loss of steering control, navigation hazards, or failure of critical safety equipment.
The emergency generator supplies only essential services. These loads are divided into 440V and 220V systems depending on the ship’s design.
440V emergency loads may include:
220V emergency loads may include:
A normal light and an emergency light are not the same. Emergency lights are clearly marked with a sticker and are connected to the emergency supply so they remain available during blackout conditions.
Other important emergency loads include:
A marine engineer must know the parts of the system and their functions.
The emergency generator has its own dedicated fuel tank. The fuel level must always be maintained above the marked level so that sufficient fuel is available for 18 hours of operation on cargo ships and 36 hours on passenger ships, as required by the applicable rules.
The combustion air passes through an air filter before entering the engine. These may be:
A clean air filter is essential for proper combustion and reliable starting.
Fuel filters remove dirt and impurities from the diesel before it reaches the engine. This protects the injection equipment and improves reliability.
If the electrical starting arrangement fails, the emergency generator may be fitted with a mechanical spring starter. This provides a manual backup method of cranking and starting the engine.
The sump oil level must be checked regularly. Since the emergency generator remains in auto mode, it may stay unused for long periods, making routine inspection critical. The oil condition should also be monitored for contamination such as carbon or soot particles. If contamination is found, the oil must be changed.
The engine cooling system includes a radiator filled with cooling water. Proper cooling is essential for safe running once the generator is on load.
A pump system is provided to supply diesel fuel to the generator engine.
If fuel leakage occurs, the fuel level in the leak-off mechanism rises and an alarm is triggered. This provides early warning of leakage or injector-related problems.
The main panel displays vital operating parameters such as:
These readings help the engineer confirm that the generator is functioning normally.
There are generally three methods of starting an emergency generator:
This is the normal method. When main power fails, the generator senses the blackout and starts automatically. It then connects to the emergency switchboard and takes the load.
If automatic starting fails, the generator can be started manually from the emergency generator room. Depending on the arrangement, the selector switch may be set to the engine position or the breaker position so that the machine starts and connects to the emergency bus.
If electrical starting also fails, a mechanical starting arrangement is used. The usual sequence is:
This ensures that the generator can still be brought into service even if battery or air start systems fail.
The emergency generator is governed by strict safety regulations under SOLAS requirements. These standards are designed to ensure that the ship remains safe during and after a blackout.
Key requirements include:
For cargo ships, the emergency generator must be able to supply essential services for at least 18 hours. For passenger ships, the required duration is 36 hours.
Regular maintenance is essential because an emergency generator is only useful if it starts instantly when needed.
Important maintenance practices include:
Routine testing proves the system is ready and also helps identify weaknesses before an actual emergency.
The emergency generator onboard ship is one of the most important systems in marine engineering. It provides backup power when the main electrical supply fails and ensures that the ship can maintain essential functions such as lighting, communication, navigation, steering, alarms, and fire-fighting support.
For a marine engineer, this system must never be treated casually. It must be tested, maintained, and inspected with the highest level of discipline. A properly functioning emergency generator can mean the difference between control and chaos during a blackout. In modern shipping, where safety and compliance are non-negotiable, the emergency generator remains a true lifeline at sea.
