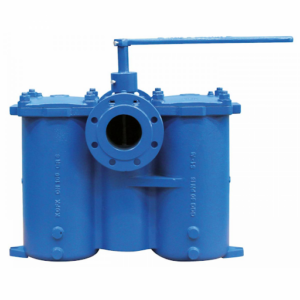

A duplex filter is a filtration system comprising two identical filter housings connected in parallel via a changeover valve. This arrangement allows one filter to remain in operation while the other is isolated for cleaning or maintenance.
Unlike a simplex filter (single filter), which requires shutdown during cleaning, a duplex filter ensures continuous filtration without interrupting system flow. This makes it highly suitable for critical systems where shutdown is not acceptable.
Duplex filters are widely used in:
The working principle of a duplex filter is based on parallel filtration and flow diversion. It ensures that fluid continues to flow through one filter while the other is serviced.
This continuous switching capability is the core principle that makes duplex filters indispensable in critical systems.

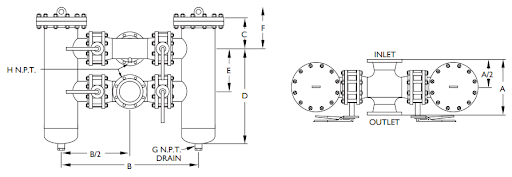

A marine or industrial engineer must be familiar with the major components:
Two identical chambers designed to withstand system pressure and temperature. Each housing contains a filter element.
These are the actual filtration media. Common types include:
The selection depends on required micron rating and fluid type.
This is the most critical component. It directs fluid flow between the two housings. Types include:
Common piping connections allow fluid entry and exit from the system.
These instruments monitor filter condition and indicate when maintenance is required.
Depending on the level of automation, duplex filters are classified into three main types:
Manual Duplex Filters
Semi-Automatic Duplex Filters
Automatic Duplex Filters
The duplex filter performs several essential functions:
In marine systems, duplex filters are particularly critical in fuel oil systems and lubrication circuits, where contamination can lead to severe machinery damage.
Feature | Duplex Filter | Simplex Filter |
Continuous Operation | Yes | No |
Maintenance During Operation | Yes | No |
Downtime Risk | Minimal | High |
Reliability | Very High | Moderate |
Initial Cost | Higher | Lower |
For critical applications, duplex filters are always preferred.
The construction material depends on application conditions:
Material selection depends on:
Before selecting a duplex filter, engineers must consider:
A properly selected duplex filter improves performance and reduces long-term maintenance costs.
The duplex filter is a vital component in modern engineering systems where continuous operation and reliability are non-negotiable. Its ability to provide uninterrupted filtration through dual parallel chambers makes it superior to conventional filtration systems.
For marine engineers and industrial professionals, understanding the working principle, components, and operation of duplex filters is essential for maintaining system integrity and preventing failures. Whether in ships, power plants, or process industries, duplex filters play a key role in ensuring smooth, safe, and efficient operations.
