# Distillation

In science, many processes have continuously worked behind the screen to take society where it is today and one such concept of science is distillation without which we would not be able to imagine ourselves at this stage of life.

## Distillation Meaning

Distillation is a process that includes heating a liquid mixture to produce a vapor and then cooling the vapor to collect the purified liquid. The distillation method works on the principle that different liquids boil at different temperatures which makes it possible to selectively separate 2 or more liquids simultaneously. This process is crucial for various products such as the extraction of petrochemicals, water treatments, and refining of products.

## What is Distillation

Distillation is used to separate different components in a liquid mixture based on their boiling points. The process begins by heating the mixture in a container until the component with the lowest boiling point starts to evaporate. This vapor rises and passes through a condenser, where it cools and condenses back into a liquid. The separated liquid, now purified, is collected in a different container.

## Laws of Distillation

Distillation works on 2 laws of science, first is Raoult’s Law and another one Dalton’s Law. Let’s see how both of these laws contribute in distillation.

## Raoult's Law

Raoult’s law states that the vapor pressure of a solution is directly proportional to the mole fraction of each component in the mixture. It means that the more of a component present in the liquid phase, the more it contributes to vapor pressure of the solution.

### Application of Raoult's Law

In distillation, Raoult’s Law helps predict how much of each component will evaporate based on their concentrations, aiding in the separation process.
• Vapor Composition: Raoult’s Law helps predict which parts of a liquid mixture will evaporate first during distillation, guiding the separation process.
• Distillation Equipment Design: The law is used to design distillation columns, helping determine how many steps are needed to separate different liquids efficiently.

## Dalton's Law

Dalton’s Law states that in a mixture of gases, the total pressure is the sum of the pressures each gas would have on its own. In distillation, this law helps figure out the makeup of the vapor by looking at the pressure each part of the mixture contributes.

### Application of Dalton's Law

Dalton’s Law in distillation explains that the total pressure of a mixture of gases equals the sum of partial pressures of each component. This principle helps in predict vapor pressure during separation.
• Vapor Composition Calculation: Dalton’s Law helps determine the amount of each component in the vapor phase during distillation.

• Pressure Control: The law is used to monitor and control the pressure within a distillation system, ensuring efficient and safe operation.

## Process Of Distillation

Process of Distillation includes various steps from heating to condensation. This method is commonly used to purify water, produce alcohol, and separate other liquid mixtures.

## Distillation Types

Distillation is such a crucial process that it is not being used in various industries. However, each industry uses different methods of distillation according to their needs.

### Simple Distillation

Simple distillation is a basic technique used to separate a liquid mixture into its individual components, particularly when the components have significantly different boiling points. In this process, the mixture is heated until the component with the lower boiling point evaporates. The vapor is then cooled in a condenser and collected as a purified liquid, called the distillate. This method is straightforward and efficient for separating components with large differences in boiling points.

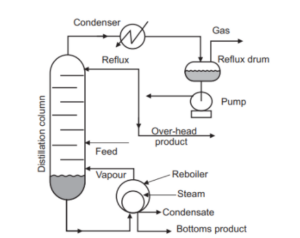

### Distillation Fractional

Fractional distillation is a more advanced technique used to separate liquid mixtures into their components, especially when those components have similar boiling points. This process involves heating the mixture to create vapor, which then passes through a fractionating column. The column provides multiple levels of condensation and evaporation, allowing for a more precise separation of the components based on their boiling points. Each level in the column acts as a mini distillation, gradually enriching the vapor in the component with the lower boiling point as it rises.

#### Fractional Column

A fractionating column is a key part of fractional distillation, used to separate liquids with close boiling points. It provides multiple condensation and evaporation stages, increasing the efficiency of separation by allowing more precise separation of components.

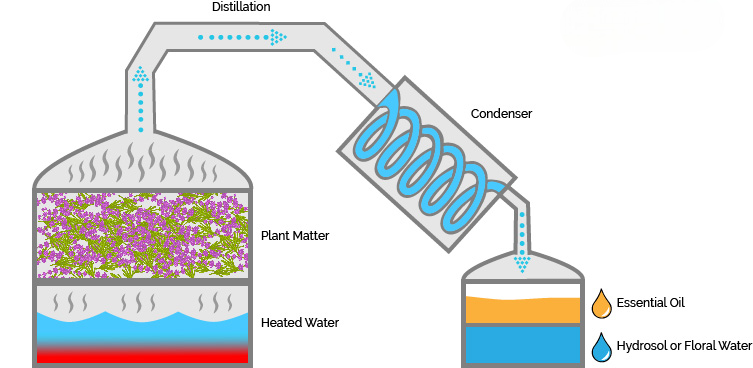

### Steam Distillation

This technique is commonly used to extract essential oils and other temperature-sensitive compounds. By introducing steam into the mixture, the boiling points of the substances are lowered, allowing them to vaporize without being exposed to high temperatures that could cause degradation. The vapor is then condensed and collected as a mixture of water and the desired oil or compound.

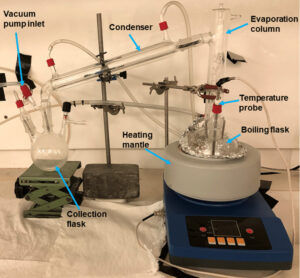

### Vacuum Distillation

Vacuum distillation is used for separating components that have high boiling points or are prone to thermal decomposition. By reducing the pressure in the distillation apparatus, the boiling points of the substances are significantly lowered. This allows the distillation to occur at much lower temperatures, preserving the integrity of heat-sensitive materials and preventing decomposition.

### Molecular Distillation

Operating under very low pressure, molecular distillation is a highly specialized technique used to purify complex and high-value mixtures, such as pharmaceuticals, essential oils, and fine chemicals. This method involves short-path distillation where the distance between the evaporating surface and the condensing surface is minimized, reducing the possibility of thermal decomposition and allowing the separation of components at the molecular level based on differences in volatility.

## Application of Distillation

Distillation is a handy process used for lots of things. It cleans water by getting rid of impurities, helps make alcoholic drinks by separating the alcohol from fermented mixtures, and turns crude oil into fuels like gasoline and diesel. In the world of medicine, it’s used to extract essential oils and make various drugs. It also plays a big role in chemical manufacturing by separating different chemicals as well as providing Fresh Water on ship via fresh water generator.
