The maritime industry is continuously evolving to improve fuel efficiency, reduce emissions, and enhance engine performance. One of the most significant technological advancements in modern marine diesel engines is the Common Rail Fuel Injection System (CRFI). Unlike conventional mechanical fuel injection systems, common rail technology separates fuel pressure generation from injection timing, allowing precise electronic control over the combustion process.
Today, common rail systems are widely used in electronically controlled marine engines such as MAN ME and Wärtsilä RT-flex engines, helping ship operators meet stringent environmental regulations while improving operational efficiency.

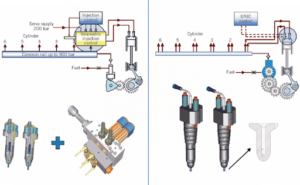

A Common Rail Fuel Injection System is an electronically controlled fuel delivery system where fuel is stored at very high pressure in a common manifold called the common rail. This pressurized fuel is then supplied to individual injectors, which are controlled electronically by the Engine Control Unit (ECU).
Unlike traditional camshaft-driven fuel pumps, the common rail system maintains constant fuel pressure regardless of engine speed or load. This allows precise control of injection timing, duration, and quantity, resulting in optimal combustion under all operating conditions.
The system operates in the following sequence:
High-pressure fuel pumps continuously compress fuel and deliver it to the common rail. Fuel pressures typically range from 1,000 to over 1,800 bar, depending on engine design and operating conditions.

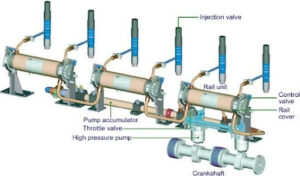

The common rail acts as a high-pressure accumulator, storing fuel and maintaining a constant pressure. It also absorbs pressure fluctuations, ensuring a stable fuel supply to all cylinders.
Various sensors continuously monitor engine parameters such as:
The ECU processes this information and determines the exact injection timing and fuel quantity required for each cylinder.
Electronically controlled injectors receive commands from the ECU and inject highly atomized fuel into the combustion chamber at precisely the right moment. Multiple injection events can occur during a single combustion cycle.
One of the biggest advantages of common rail technology is the ability to perform multiple injection events during a single engine cycle:
A small quantity of fuel is injected before the main injection to initiate smooth combustion and reduce engine knocking.
The primary fuel delivery responsible for generating engine power.
A small quantity injected after the main combustion event to reduce emissions and improve exhaust gas treatment performance.
This flexibility allows engineers to optimize combustion characteristics across the entire operating range.
Despite its advantages, common rail technology also presents several challenges:
Common rail technology is extensively used in modern electronically controlled marine engines, including:
These engines benefit from improved efficiency, reduced emissions, and compliance with IMO environmental regulations.
The Common Rail Fuel Injection System represents a major advancement in marine diesel engine technology. By separating fuel pressure generation from injection timing and enabling precise electronic control, it delivers superior fuel economy, lower emissions, smoother operation, and enhanced engine flexibility. Although the system is more complex than traditional mechanical injection systems, its operational benefits have made it the preferred choice for modern marine propulsion engines. As environmental regulations continue to tighten, common rail technology will remain a key solution for achieving cleaner, more efficient, and more reliable maritime transportation.
A Common Rail Fuel Injection System (CRFI) is an electronically controlled fuel injection system in which fuel is stored at high pressure in a common rail and supplied to each injector. The Engine Control Unit (ECU) precisely controls the timing, quantity, and duration of fuel injection, resulting in improved engine performance, fuel efficiency, and lower emissions.
Compared to conventional mechanical fuel injection systems, a common rail system offers higher fuel efficiency, precise fuel metering, lower exhaust emissions, smoother engine operation, reduced engine noise, improved low-load performance, and better control over combustion through multiple injection events.
Common rail technology is widely used in modern electronically controlled marine diesel engines, including MAN ME/ME-C and Wärtsilä RT-flex/X-series engines. It is also commonly found in auxiliary diesel generators, offshore vessels, and LNG-powered ships to improve efficiency and meet IMO emission standards.
Routine maintenance includes checking fuel quality, replacing fuel filters, inspecting high-pressure pumps and injectors, monitoring common rail pressure, testing sensors and electronic control units (ECU), and diagnosing faults using the engine’s monitoring system. Using clean fuel and following the manufacturer’s maintenance schedule helps ensure reliable operation and extends component life.
