A boiler safety valve is one of the most important safety devices fitted on a marine boiler. Its primary function is to protect the boiler from excessive steam pressure and prevent dangerous explosions. Whenever the boiler pressure rises above the permissible limit, the safety valve automatically opens and releases excess steam into the atmosphere.
On ships, boiler safety valves are fitted according to SOLAS and classification society requirements because boiler overpressure can cause catastrophic damage to machinery and serious danger to personnel.
A boiler safety valve is an automatic spring-loaded valve mounted on the steam drum or boiler shell. It opens automatically when steam pressure exceeds the set pressure and closes again once the pressure drops to a safe level.
Marine boilers generally have:
These valves ensure that the boiler pressure never exceeds the maximum allowable working pressure (MAWP).
Without a properly functioning safety valve, boiler pressure could continue increasing during:
This excessive pressure may rupture the boiler shell or tubes, leading to explosion and severe accidents.

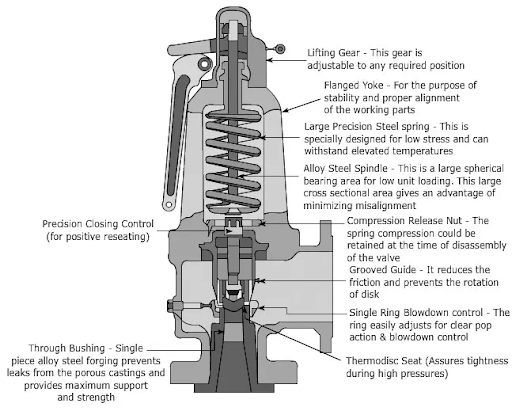

The important components are:
The working of a marine boiler safety valve is based on the balance between:
Under normal operating conditions, the spring force keeps the valve tightly seated. When boiler pressure rises and exceeds the preset pressure, the steam force becomes greater than the spring force. The valve lifts automatically and releases excess steam to atmosphere.
The released steam reduces boiler pressure. Once the pressure falls below the reseating pressure, the spring pushes the valve back onto its seat and the valve closes automatically.
Safety Valve Set Pressure
Marine boiler safety valves are generally set to lift at:
Plift≤1.03×Pworking
This means the valve should lift at not more than 3% above the approved working pressure.
Normal Condition
The valve remains closed because:
Fspring>Fsteam
Overpressure Condition
When boiler pressure increases:
Fsteam>Fspring
The valve lifts and steam escapes.
Pressure Reduction
After pressure decreases:
This automatic operation protects the boiler continuously.
Caused by:
Occurs due to:
Possible reasons:
Routine maintenance includes:
Safety valve settings must never be altered without proper authorization and surveyor approval.
Improper handling can cause serious burns from high-pressure steam.
The boiler safety valve is a critical protective device in marine engineering. It automatically prevents dangerous overpressure conditions by releasing excess steam whenever boiler pressure exceeds safe limits.
Understanding the working principle, parts, testing procedures, and maintenance of boiler safety valves is essential for every marine engineer. Regular inspection, proper setting, and periodic testing using easing gear ensure reliable operation and safe boiler performance onboard ships.
